Diffraction in an Opening
Storyboard

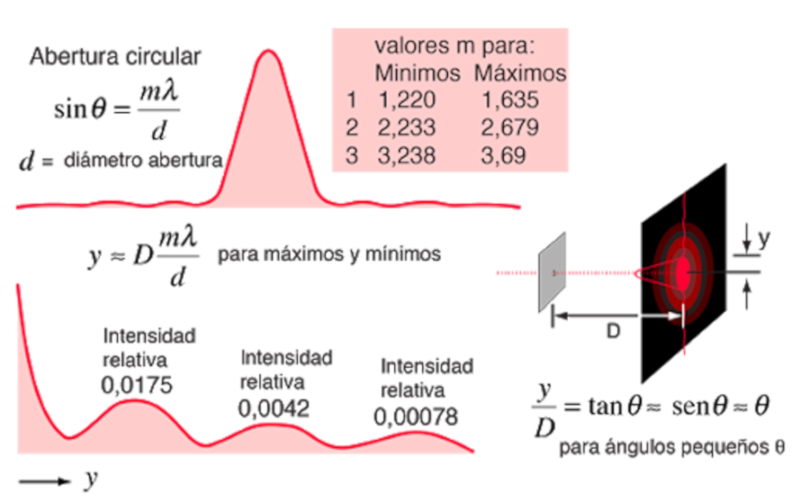

If the light passes through a circular hole, it is observed on a screen that there is a characteristic diffraction pattern around the center beam and the wavelength of light around the central beam.
ID:(1382, 0)
First line diffraction in opening
Equation
 $ \lambda =\displaystyle\frac{1}{1.22} D \sin \theta_1 $ |
ID:(10951, 0)
Second line diffraction in opening
Equation
| $ \lambda =\displaystyle\frac{1}{2.23} D \sin \theta_2 $ |
ID:(10952, 0)
Third line diffraction in opening
Equation
| $ \lambda =\displaystyle\frac{1}{3.24} D \sin \theta_3 $ |
ID:(10953, 0)
