Surface circulation in the oceans
Definition

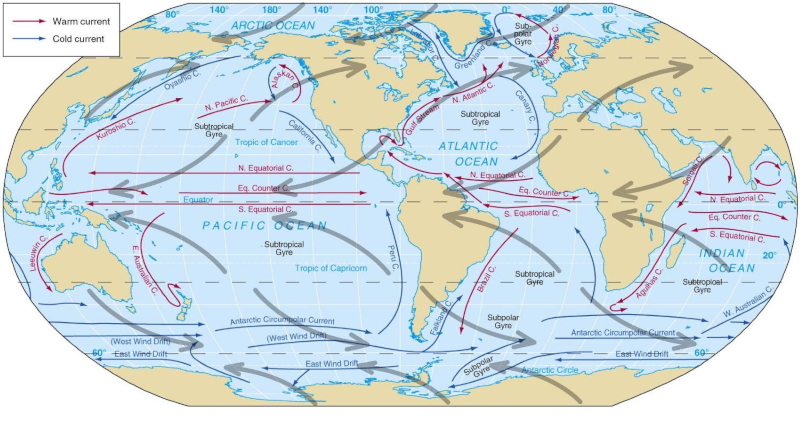

Wind-induced circulation in the atmosphere generates five major vortices: two in the Pacific, two in the Atlantic, and one in the Indian Ocean.
As anticipated by Coriolis law these rotate in the northern hemisphere in the negative direction (clockwise) and positive in the southern hemisphere (counterclockwise) ).
They are classified as cold and hot according to the temperature they are acquiring in the equatorial and polar zones.
ID:(11676, 0)

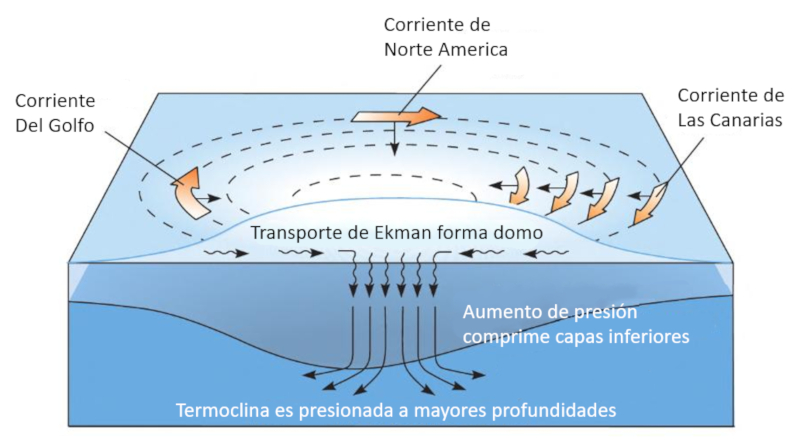

Circulation by dome formation
La formación del domo por el flujo hacia el centro del vórtice, que forma un transporte de Ekman, lleva a que la presión con
| $ p_t = p_0 + \rho_w g h $ |
generen flujos hacia la profundidad que arrastra agua mas cálida a las profundidades desplazando la termoclina (temperatura).
ID:(11685, 0)

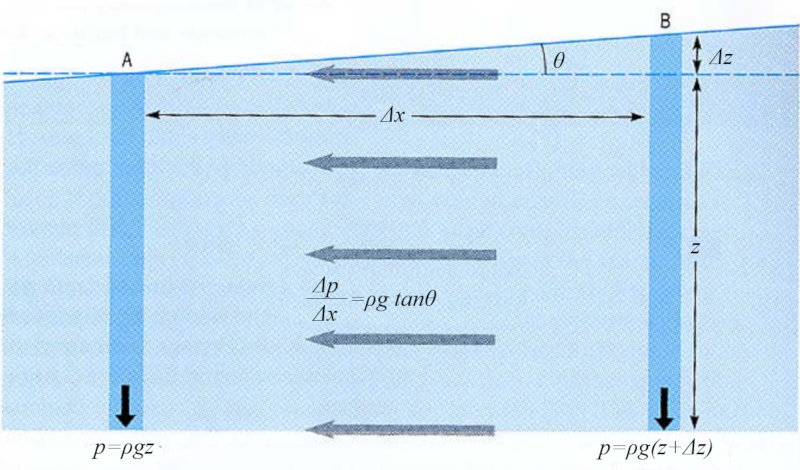

Isobaric plane inclination
Note
If the depth varies with horizontal position, it creates a pressure difference that contributes to the displacement of water.
ID:(12100, 0)
Depth Difference Generation
Quote

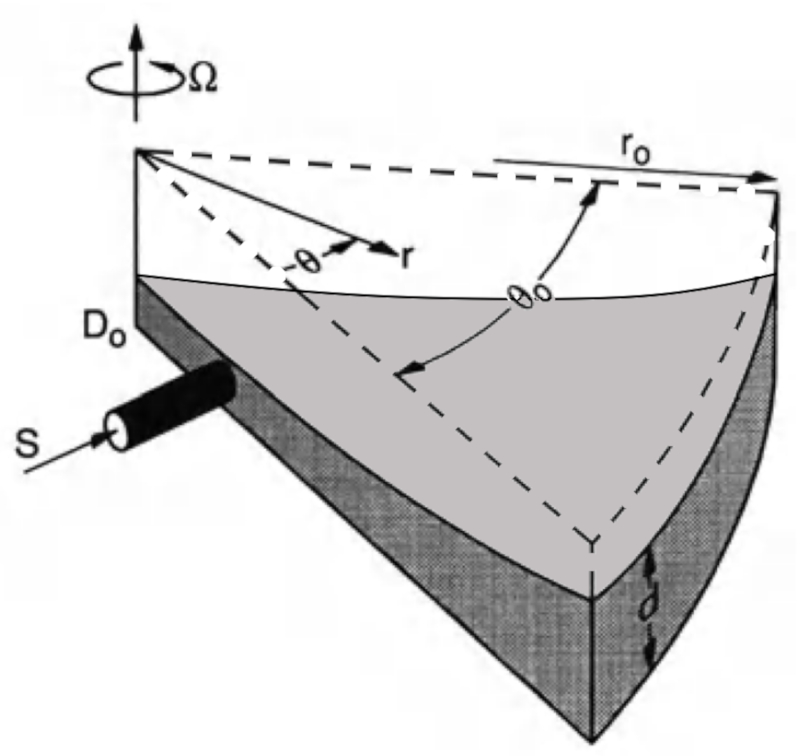

The experiment conducted by Stommel, Arons, and Faller demonstrated how a source and the Coriolis force created imbalances and pressure differences to displace water without the involvement of wind.
In this case, we have a rotating system, experiencing centrifugal acceleration, and a liquid source that alters the quantity at a point near the origin:
ID:(12101, 0)
Inclination of Isobaric Surfaces
Storyboard
Variables
Calculations
to
,
then, select the variable:
to
Calculations
Variable
Given
Calculate
Target :
Equation
To be used
Equations
Examples
Wind-induced circulation in the atmosphere generates five major vortices: two in the Pacific, two in the Atlantic, and one in the Indian Ocean.
As anticipated by Coriolis law these rotate in the northern hemisphere in the negative direction (clockwise) and positive in the southern hemisphere (counterclockwise) ).
They are classified as cold and hot according to the temperature they are acquiring in the equatorial and polar zones.
La formaci n del domo por el flujo hacia el centro del v rtice, que forma un transporte de Ekman, lleva a que la presi n con
generen flujos hacia la profundidad que arrastra agua mas c lida a las profundidades desplazando la termoclina (temperatura).
If the depth varies with horizontal position, it creates a pressure difference that contributes to the displacement of water.
The experiment conducted by Stommel, Arons, and Faller demonstrated how a source and the Coriolis force created imbalances and pressure differences to displace water without the involvement of wind.
In this case, we have a rotating system, experiencing centrifugal acceleration, and a liquid source that alters the quantity at a point near the origin:
Injecting fluid at the source position creates a level
Since hydrostatic pressure is dependent on depth, we can express it with
The pressure in a rotating system can be calculated using
ID:(1526, 0)
