Sowing

Storyboard

>Model

ID:(1684, 0)


Sowing

Description

Variables

Symbol
Text
Variable
Value
Units
Calculate
MKS Value
MKS Units
$a_0$
a_0
Constant Acceleration
m/s^2
$v_{0x}$
v_0x
Initial horizontal speed
m/s
$v_0$
v_0
Initial Speed
m/s
$\omega$
omega
Instantaneous Angular Speed
rad/s
$s$
s
Position
m
$x$
x
Position on the x-axis
m
$r$
r
Radio
m
$s_0$
s_0
Starting position
m
$v_t$
v_t
Tangent speed
m/s
$t$
t
Time
s

Calculations


First, select the equation:   to ,  then, select the variable:   to

Symbol
Equation
Solved
Translated

Calculations

Symbol
Equation
Solved
Translated

 Variable   Given   Calculate   Target :   Equation   To be used



Equations

En el caso de que se asuma que el tiempo inicial es nulo\\n\\n

$t_0=0$



la ecuaci n de la posici n

$ s = s_0 + v_0 ( t - t_0 )+\displaystyle\frac{1}{2} a_0 ( t - t_0 )^2$



se reduce a

$ s = s_0 + v_0 t +\displaystyle\frac{1}{2} a_0 t ^2$

(ID 4360)

The position ($s$) traveled with the constant velocity ($v_0$) with the starting position ($s_0$), the time ($t$), and the start Time ($t_0$) is

$ s = s_0 + v_0 ( t - t_0 )$



Therefore, if the motion starts at the origin ($s_0=0$) at the beginning of time ($t_0=0$), the motion is described by $x=s$ and $v_0=v_{0x}$.

$ x = v_{0x} t $


(ID 10930)


Examples

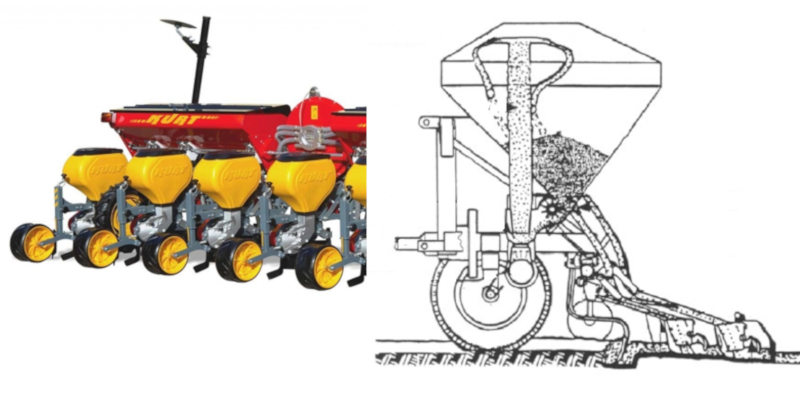

Los equipos de sembrado tiene la forma


(ID 12891)

El plantar de semillas se puede modelar como un flujo de part culas en que la tasa R_s, el flujo Q, la densidad de las semillas \rho, el ancho de la zona pantada w y velocidad de avance del equipo v

$ R_s =\displaystyle\frac{ Q \rho }{ w v }$


(ID 12839)

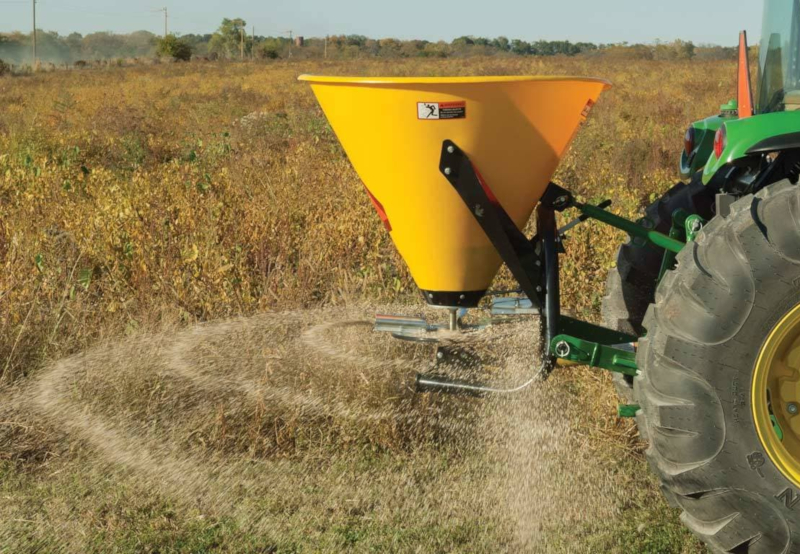

La semillas pueden ser tambi n distribuidas con un mecanismo centrifugo para su lanzamiento:


(ID 12899)

Si se divide el camino expresado como arco de un circulo se tendr que con es

$ \Delta s=r \Delta\theta $



por el tiempo transcurrido \Delta t, la velocidad de traslaci n con es

$ \bar{v} \equiv\displaystyle\frac{ \Delta s }{ \Delta t }$



y como la velocidad angular con es

$ \bar{\omega} \equiv\displaystyle\frac{ \Delta\theta }{ \Delta t }$



se tiene con la relaci n

$ v_t = r \omega $


(ID 10968)

En el caso de que se asuma que la aceleraci n inicial es constante y tiempo inicial nulo la ecuaci n de la posici n

$ s = s_0 + v_0 ( t - t_0 )+\displaystyle\frac{1}{2} a_0 ( t - t_0 )^2$



se reduce a

$ s = s_0 + v_0 t +\displaystyle\frac{1}{2} a_0 t ^2$


(ID 4360)

The object cycles through a time ($t$) to a initial horizontal speed ($v_{0x}$) A position on the x-axis ($x$) equal to

$ x = v_{0x} t $


(ID 10930)

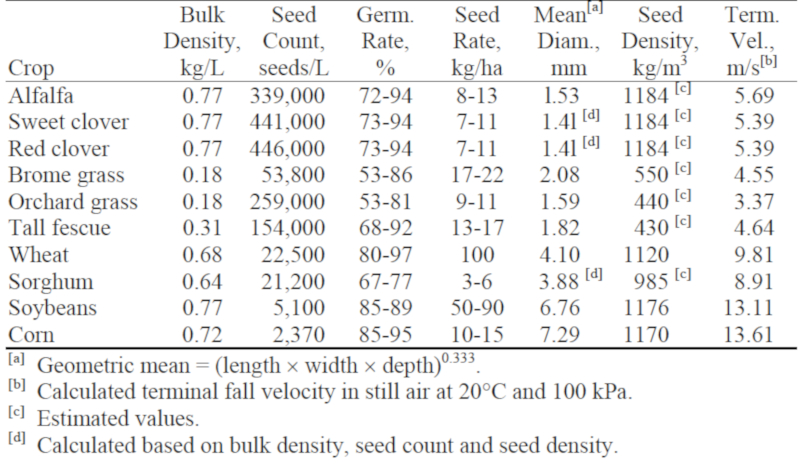

Los par metros claves para la plantaci n se dan como ejemplo para algunas especies


(ID 12841)
