Storyboard

>Modell

ID:(1806, 0)

Beschreibung

>Top

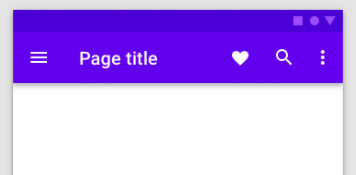

MDToolbar, Top

Format of MDToolbar, Top

MDToolbar:
    title: 'MDToolbar'
    left_action_items: [['menu', lambda x: app.callback()]]
    right_action_items: [['dots-vertical', lambda x: app.callback()]]
    md_bg_color: app.theme_cls.accent_color

from kivy.lang import Builder

from kivymd.app import MDApp

KV = '''
MDBoxLayout:
    orientation: 'vertical'

    MDToolbar:
        title: 'MDToolbar'
        left_action_items: [['menu', lambda x: app.callback()]]
        right_action_items: [['dots-vertical', lambda x: app.callback()]]
        md_bg_color: app.theme_cls.accent_color

    MDLabel:
        text: 'Content'
        halign: 'center'

'''

class ModelApp(MDApp):
    def build(self):
        return Builder.load_string(KV)

ModelApp().run()

ID:(13925, 0)

Beschreibung

>Top

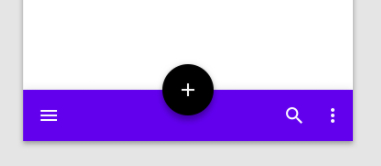

MDToolbar, Bottom

Format of MDToolbar, Bottom

MDBottomAppBar:

    MDToolbar:
        title: 'MDToolbar'
        type: 'bottom'
        left_action_items: [['menu', lambda x: app.callback()]]
        right_action_items: [['dots-vertical', lambda x: app.callback()]]
        md_bg_color: app.theme_cls.accent_color

from kivy.lang import Builder

from kivymd.app import MDApp

KV = '''
MDBoxLayout:

    # Will always be at the bottom of the screen.
    MDBottomAppBar:

        MDToolbar:
            title: 'MDToolbar'
            type: 'bottom'
            left_action_items: [['menu', lambda x: app.callback()]]
            right_action_items: [['dots-vertical', lambda x: app.callback()]]
            md_bg_color: app.theme_cls.accent_color
'''

class ModelApp(MDApp):
    def build(self):
        return Builder.load_string(KV)

ModelApp().run()

ID:(13954, 0)

Beschreibung

>Top

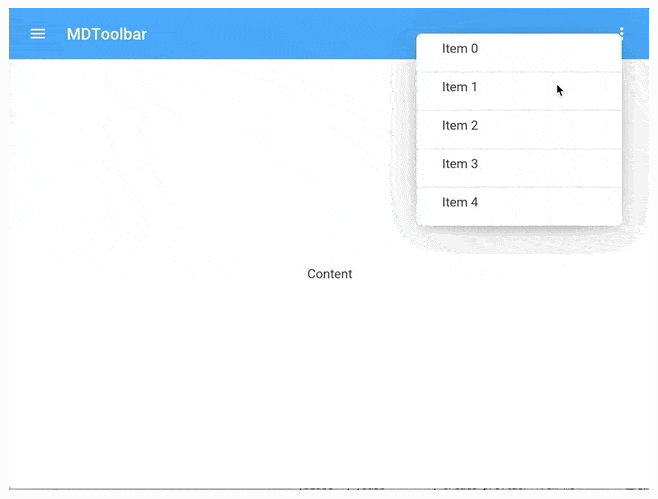

MDToolbar, Menus

Format of MDToolbar, Menus

MDToolbar:
    title: 'MDToolbar'
    left_action_items: [['menu', lambda x: app.callback(x)]]
    right_action_items: [['dots-vertical', lambda x: app.callback(x)]]

menu_items = [
    {
        'viewclass': 'OneLineListItem',
        'text': f'Item {i}',
        'height': dp(56),
        'on_release': lambda x=f'Item {i}': self.menu_callback(x),
    } for i in range(5)
]
self.menu = MDDropdownMenu(
    items=menu_items,
    width_mult=4,
)

from kivy.lang import Builder
from kivy.metrics import dp

from kivymd.app import MDApp
from kivymd.uix.menu import MDDropdownMenu

KV = '''
MDBoxLayout:
    orientation: 'vertical'

    MDToolbar:
        title: 'MDToolbar'
        left_action_items: [['menu', lambda x: app.callback(x)]]
        right_action_items: [['dots-vertical', lambda x: app.callback(x)]]

    MDLabel:
        text: 'Content'
        halign: 'center'
'''


class ModelApp(MDApp):
    def build(self):
        menu_items = [
            {
                'viewclass': 'OneLineListItem',
                'text': f'Item {i}',
                'height': dp(56),
                'on_release': lambda x=f'Item {i}': self.menu_callback(x),
             } for i in range(5)
        ]
        self.menu = MDDropdownMenu(
            items=menu_items,
            width_mult=4,
        )
        return Builder.load_string(KV)

    def callback(self, button):
        self.menu.caller = button
        self.menu.open()

    def menu_callback(self, text_item):
        pass

ModelApp().run()

ID:(13955, 0)

Beschreibung

>Top

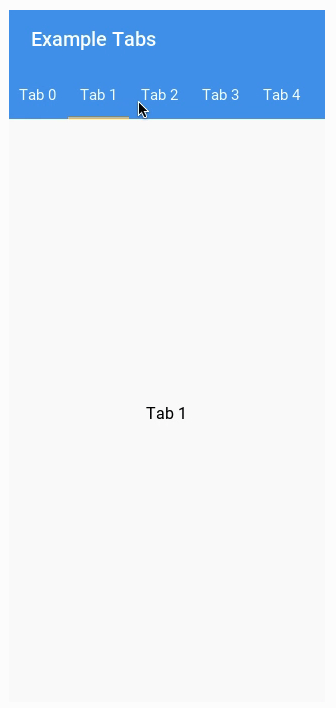

MDTab, Text

MDTab format

MDTabs:
    id: tabs
    on_tab_switch: app.on_tab_switch(*args)

<Tab>

    MDLabel:
        id: label
        text: 'Tab 0'
        halign: 'center'

from kivy.lang import Builder

from kivymd.app import MDApp
from kivymd.uix.floatlayout import MDFloatLayout
from kivymd.uix.tab import MDTabsBase

KV = '''
MDBoxLayout:
    orientation: 'vertical'

    MDTabs:
        id: tabs
        on_tab_switch: app.on_tab_switch(*args)

<Tab>

    MDLabel:
        id: label
        text: 'Tab 0'
        halign: 'center'
'''

class Tab(MDFloatLayout, MDTabsBase):
    '''Class implementing content for a tab.'''

class ModelApp(MDApp):
    def build(self):
        return Builder.load_string(KV)

    def on_start(self):
        for i in range(20):
            self.root.ids.tabs.add_widget(Tab(title=f'Tab {i}'))

    def on_tab_switch(
        self, instance_tabs, instance_tab, instance_tab_label, tab_text
    ):
        '''Called when switching tabs.

        :type instance_tabs: <kivymd.uix.tab.MDTabs object>;
        :param instance_tab: <__main__.Tab object>;
        :param instance_tab_label: <kivymd.uix.tab.MDTabsLabel object>;
        :param tab_text: text or name icon of tab;
        '''

        instance_tab.ids.label.text = tab_text

ModelApp().run()

ID:(13931, 0)

Beschreibung

>Top

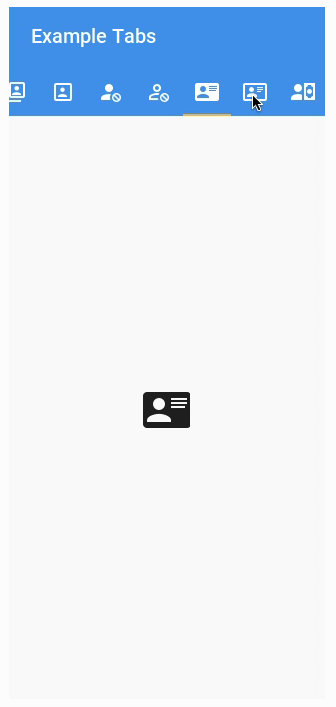

MDTab, Icon

MDTab format

MDTabs:
    id: tabs
    on_tab_switch: app.on_tab_switch(*args)



    MDIconButton:
        id: icon
        icon: root.icon
        user_font_size: '48sp'
        pos_hint: {'center_x': .5, 'center_y': .5}

from kivy.lang import Builder

from kivymd.app import MDApp
from kivymd.uix.tab import MDTabsBase
from kivymd.uix.floatlayout import MDFloatLayout
from kivymd.icon_definitions import md_icons

KV = '''
MDBoxLayout:
    orientation: 'vertical'

    MDTabs:
        id: tabs
        on_tab_switch: app.on_tab_switch(*args)

<Tab>

    MDIconButton:
        id: icon
        icon: root.icon
        user_font_size: '48sp'
        pos_hint: {'center_x': .5, 'center_y': .5}
'''

class Tab(MDFloatLayout, MDTabsBase):
    '''Class implementing content for a tab.'''

class ModelApp(MDApp):
    icons = list(md_icons.keys())[15:30]

    def build(self):
        return Builder.load_string(KV)

    def on_start(self):
        for tab_name in self.icons:
            self.root.ids.tabs.add_widget(Tab(icon=tab_name))

    def on_tab_switch(
        self, instance_tabs, instance_tab, instance_tab_label, tab_text
    ):
        '''
        Called when switching tabs.

        :type instance_tabs: <kivymd.uix.tab.MDTabs object>;
        :param instance_tab: <__main__.Tab object>;
        :param instance_tab_label: <kivymd.uix.tab.MDTabsLabel object>;
        :param tab_text: text or name icon of tab;
        '''
        # get the tab icon.
        count_icon = instance_tab.icon
        # print it on shell/bash.
        print(f'Welcome to {count_icon}' tab'')

ModelApp().run()

ID:(13930, 0)

Beschreibung

>Top

from kivy.lang import Builder

from kivymd.app import MDApp
from kivymd.uix.menu import MDDropdownMenu

KV = '''
MDScreen:

    MDRaisedButton:
        id: button
        text: 'PRESS ME'
        pos_hint: {'center_x': .5, 'center_y': .5}
        on_release: app.menu.open()
'''


class Test(MDApp):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.screen = Builder.load_string(KV)
        menu_items = [
            {
                'text': f'Item {i}',
                'viewclass': 'OneLineListItem',
                'on_release': lambda x=f'Item {i}': self.menu_callback(x),
            } for i in range(5)
        ]
        self.menu = MDDropdownMenu(
            caller=self.screen.ids.button,
            items=menu_items,
            width_mult=4,
        )

    def menu_callback(self, text_item):
        print(text_item)

    def build(self):
        return self.screen


Test().run()

ID:(13917, 0)

Beschreibung

>Top

from kivy.lang import Builder
from kivy.metrics import dp
from kivy.properties import StringProperty

from kivymd.app import MDApp
from kivymd.uix.boxlayout import MDBoxLayout
from kivymd.uix.list import IRightBodyTouch, OneLineAvatarIconListItem
from kivymd.uix.menu import MDDropdownMenu

KV = '''

    disabled: True
    adaptive_size: True
    pos_hint: {'center_y': .5}

    MDIconButton:
        icon: root.icon
        user_font_size: '16sp'
        md_bg_color_disabled: 0, 0, 0, 0

    MDLabel:
        text: root.text
        font_style: 'Caption'
        adaptive_size: True
        pos_hint: {'center_y': .5}




    IconLeftWidget:
        icon: root.left_icon

    RightContentCls:
        id: container
        icon: root.right_icon
        text: root.right_text


MDScreen:

    MDRaisedButton:
        id: button
        text: 'PRESS ME'
        pos_hint: {'center_x': .5, 'center_y': .5}
        on_release: app.menu.open()
'''


class RightContentCls(IRightBodyTouch, MDBoxLayout):
    icon = StringProperty()
    text = StringProperty()


class Item(OneLineAvatarIconListItem):
    left_icon = StringProperty()
    right_icon = StringProperty()
    right_text = StringProperty()


class Test(MDApp):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.screen = Builder.load_string(KV)
        menu_items = [
            {
                'text': f'Item {i}',
                'right_text': f'R+{i}',
                'right_icon': 'apple-keyboard-command',
                'left_icon': 'git',
                'viewclass': 'Item',
                'height': dp(54),
                'on_release': lambda x=f'Item {i}': self.menu_callback(x),
            } for i in range(5)
        ]
        self.menu = MDDropdownMenu(
            caller=self.screen.ids.button,
            items=menu_items,
            width_mult=4,
        )

    def menu_callback(self, text_item):
        print(text_item)

    def build(self):
        return self.screen


Test().run()

ID:(13918, 0)

Beschreibung

>Top

from kivy.lang import Builder
from kivy.metrics import dp

from kivymd.app import MDApp
from kivymd.uix.menu import MDDropdownMenu
from kivymd.uix.boxlayout import MDBoxLayout

KV = '''

    orientation: 'vertical'
    adaptive_size: True
    padding: '4dp'

    MDBoxLayout:
        spacing: '12dp'
        adaptive_size: True

        MDIconButton:
            icon: 'gesture-tap-button'
            pos_hint: {'center_y': .5}

        MDLabel:
            text: 'Actions'
            adaptive_size: True
            pos_hint: {'center_y': .5}


MDScreen:

    MDRaisedButton:
        id: button
        text: 'PRESS ME'
        pos_hint: {'center_x': .5, 'center_y': .5}
        on_release: app.menu.open()
'''


class MenuHeader(MDBoxLayout):
    '''An instance of the class that will be added to the menu header.'''


class Test(MDApp):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.screen = Builder.load_string(KV)
        menu_items = [
            {
                'text': f'Item {i}',
                'viewclass': 'OneLineListItem',
                'height': dp(56),
                'on_release': lambda x=f'Item {i}': self.menu_callback(x),
            } for i in range(5)
        ]
        self.menu = MDDropdownMenu(
            header_cls=MenuHeader(),
            caller=self.screen.ids.button,
            items=menu_items,
            width_mult=4,
        )

    def menu_callback(self, text_item):
        print(text_item)

    def build(self):
        return self.screen


Test().run()

ID:(13919, 0)

Beschreibung

>Top

from kivy.lang import Builder
from kivy.metrics import dp

from kivymd.app import MDApp
from kivymd.uix.menu import MDDropdownMenu
from kivymd.uix.snackbar import Snackbar

KV = '''
MDBoxLayout:
    orientation: 'vertical'

    MDToolbar:
        title: 'MDToolbar'
        left_action_items: [['menu', lambda x: app.callback(x)]]
        right_action_items: [['dots-vertical', lambda x: app.callback(x)]]

    MDLabel:
        text: 'Content'
        halign: 'center'
'''


class Test(MDApp):
    def build(self):
        menu_items = [
            {
                'viewclass': 'OneLineListItem',
                'text': f'Item {i}',
                'height': dp(56),
                'on_release': lambda x=f'Item {i}': self.menu_callback(x),
             } for i in range(5)
        ]
        self.menu = MDDropdownMenu(
            items=menu_items,
            width_mult=4,
        )
        return Builder.load_string(KV)

    def callback(self, button):
        self.menu.caller = button
        self.menu.open()

    def menu_callback(self, text_item):
        self.menu.dismiss()
        Snackbar(text=text_item).open()


Test().run()

ID:(13920, 0)

Beschreibung

>Top

from kivy.lang import Builder
from kivy.metrics import dp
from kivy.properties import StringProperty

from kivymd.uix.list import OneLineIconListItem
from kivymd.app import MDApp
from kivymd.uix.menu import MDDropdownMenu

KV = '''


    IconLeftWidget:
        icon: root.icon


MDScreen

    MDTextField:
        id: field
        pos_hint: {'center_x': .5, 'center_y': .6}
        size_hint_x: None
        width: '200dp'
        hint_text: 'Password'
        on_focus: if self.focus: app.menu.open()
'''


class IconListItem(OneLineIconListItem):
    icon = StringProperty()


class Test(MDApp):
    def __init__(self, **kwargs):
        super().__init__(**kwargs)
        self.screen = Builder.load_string(KV)
        menu_items = [
            {
                'viewclass': 'IconListItem',
                'icon': 'git',
                'height': dp(56),
                'text': f'Item {i}',
                'on_release': lambda x=f'Item {i}': self.set_item(x),
            } for i in range(5)]
        self.menu = MDDropdownMenu(
            caller=self.screen.ids.field,
            items=menu_items,
            position='bottom',
            width_mult=4,
        )

    def set_item(self, text__item):
        self.screen.ids.field.text = text__item
        self.menu.dismiss()

    def build(self):
        return self.screen


Test().run()

ID:(13921, 0)

Beschreibung

>Top

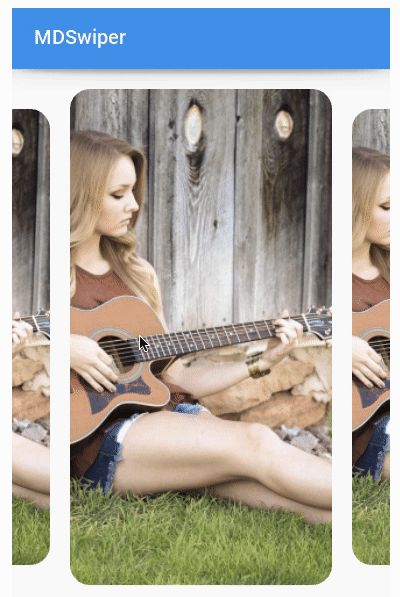

MDSwiper

Format of MDSwiper

MDSwiper:
    size_hint_y: None
    height: root.height - toolbar.height - dp(40)
    y: root.height - self.height - toolbar.height - dp(20)

    MySwiper:

    MySwiper:

    MySwiper:

    MySwiper:

    MySwiper:

from kivymd.app import MDApp
from kivy.lang.builder import Builder

kv = '''
<MySwiper@MDSwiperItem>

    FitImage:
        source: 'lego_blue.jpg'
        radius: [20,]

MDScreen:

    MDToolbar:
        id: toolbar
        title: 'MDSwiper'
        elevation: 10
        pos_hint: {'top': 1}

    MDSwiper:
        size_hint_y: None
        height: root.height - toolbar.height - dp(40)
        y: root.height - self.height - toolbar.height - dp(20)

        MySwiper:

        MySwiper:

        MySwiper:

        MySwiper:

        MySwiper:
'''

class MainApp(MDApp):
    def build(self):
        return Builder.load_string(kv)

MainApp().run()

ID:(13922, 0)

Beschreibung

>Top

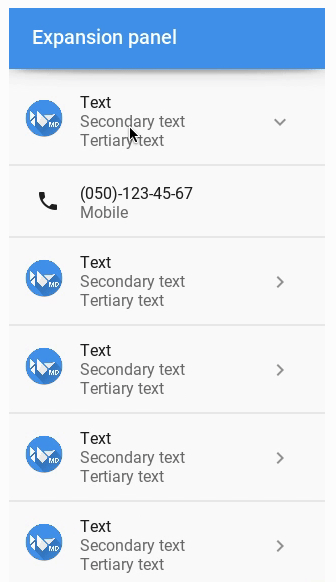

MDExpansionPanel

MDExpansionPanel format:

<Content>
    adaptive_height: True

    TwoLineIconListItem:
        text: '(050)-123-45-67'
        secondary_text: 'Mobile'

        IconLeftWidget:
            icon: 'phone'

from kivy.lang import Builder

from kivymd.app import MDApp
from kivymd.uix.boxlayout import MDBoxLayout
from kivymd.uix.expansionpanel import MDExpansionPanel, MDExpansionPanelThreeLine
from kivymd import images_path

KV = '''
<Content>
    adaptive_height: True

    TwoLineIconListItem:
        text: '(050)-123-45-67'
        secondary_text: 'Mobile'

        IconLeftWidget:
            icon: 'phone'

ScrollView:

    MDGridLayout:
        id: box
        cols: 1
        adaptive_height: True
'''

class Content(MDBoxLayout):
    '''Custom content.'''

class MainApp(MDApp):
    def build(self):
        return Builder.load_string(KV)

    def on_start(self):
        for i in range(10):
            self.root.ids.box.add_widget(
                MDExpansionPanel(
                    icon=f'{images_path}kivymd.png',
                    content=Content(),
                    panel_cls=MDExpansionPanelThreeLine(
                        text='Text',
                        secondary_text='Secondary text',
                        tertiary_text='Tertiary text',
                    )
                )
            )

MainApp().run()

ID:(13934, 0)

Beschreibung

>Top

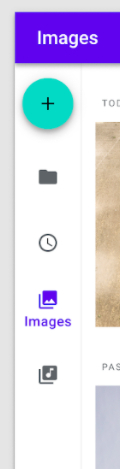

MDNavigationRail

Parameter:
BooleanProperty use_hover_behavior, use_resizeable, use_title, use_action_button
ColorProperty action_color_button, color_normal, color_active, hover_bg, color_transition
OptionProperty visible, rail_state
StringProperty icon_title, text_title, action_icon_button, action_text_button
NumericProperty color_change_duration

Method:
anim_color_normal(self, item), anim_color_active(self, item), item_switch(self, instance_item), add_widget(self, widget, index=0, canvas=None), open(self), close(self), on_rail_state(self, instance, value), on_item_switch(self, instance_item), on_open(self), on_close(self), on_action_button(self, floating_action_button), on_visible(self, instance, value), on_use_title(self, instance, value), on_use_resizeable(self, instance, value), on_use_action_button(self, instance, value), press_floating_action_button(self, floating_action_button), set_action_color_button(self, interval), set_width(self, interval), set_box_title_size(self, interval), set_action_icon_button(self, interval), set_action_text_button(self, interval), set_color_menu_item(self, instance_item), set_items_color(self, interval), set_items_visible(self, interval)

MDNavigationRailItem

Parameter:
StringProperty icon, text,
ObjectProperty navigation_rail,
ColorProperty color_normal, color_active

Method:
set_width(self, interval), on_enter(self), on_leave(self), on_release(self), on_visible(self, instance, value), set_item_label_transparency(self, interval)

MDNavigationRail format

MDNavigationRail:
    id: rail
    md_bg_color: get_color_from_hex('#344954')
    color_normal: get_color_from_hex('#718089')
    color_active: get_color_from_hex('#f3ab44')

    MDNavigationRailItem:
        icon: 'language-cpp'
        text: 'C++'

    MDNavigationRailItem:
        icon: 'language-python'
        text: 'Python'

    MDNavigationRailItem:
        icon: 'language-swift'
        text: 'Swift'

from kivy.factory import Factory
from kivy.lang import Builder

from kivymd.app import MDApp

KV = '''
#:import get_color_from_hex kivy.utils.get_color_from_hex

<MyTile@SmartTileWithStar>
    size_hint_y: None
    height: '240dp'

MDBoxLayout:
    orientation: 'vertical'

    MDToolbar:
        title: 'MDNavigationRail'
        md_bg_color: rail.md_bg_color
        left_action_items: [['menu', lambda x: app.rail_open()]]

    MDBoxLayout:

        MDNavigationRail:
            id: rail
            md_bg_color: get_color_from_hex('#344954')
            color_normal: get_color_from_hex('#718089')
            color_active: get_color_from_hex('#f3ab44')
            use_resizeable: True

            MDNavigationRailItem:
                icon: 'language-cpp'
                text: 'C++'

            MDNavigationRailItem:
                icon: 'language-java'
                text: 'Java'

            MDNavigationRailItem:
                icon: 'language-swift'
                text: 'Swift'

        MDBoxLayout:
            padding: '24dp'

            ScrollView:

                MDList:
                    id: box
                    cols: 3
                    spacing: '12dp'
'''

class ModelApp(MDApp):
    def build(self):
        return Builder.load_string(KV)

    def rail_open(self):
        if self.root.ids.rail.rail_state == 'open':
            self.root.ids.rail.rail_state = 'close'
        else:
            self.root.ids.rail.rail_state = 'open'

    def on_start(self):
        for i in range(9):
            tile = Factory.MyTile(source='kitten.png')
            tile.stars = 5
            self.root.ids.box.add_widget(tile)

ModelApp().run()

ID:(13924, 0)

Beschreibung

>Top

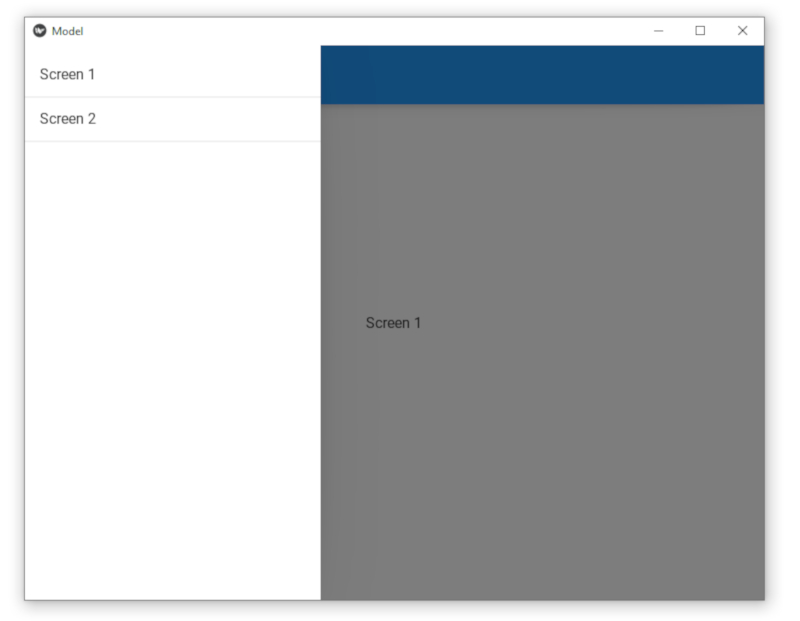

MDNavigationLayout

Format of MDNavigationLayout

MDNavigationLayout:
    x: toolbar.height

    ScreenManager:
        id: screen_manager

        MDScreen:
            name: 'scr 1'

            MDLabel:
                text: 'Screen 1'
                halign: 'center'

        MDScreen:
            name: 'scr 2'

            MDLabel:
                text: 'Screen 2'
                halign: 'center'

    MDNavigationDrawer:
        id: nav_drawer

        ContentNavigationDrawer:
            screen_manager: screen_manager
            nav_drawer: nav_drawer

from kivy.lang import Builder
from kivy.properties import ObjectProperty

from kivymd.app import MDApp
from kivymd.uix.boxlayout import MDBoxLayout

KV = '''
:

    ScrollView:

        MDList:

            OneLineListItem:
                text: 'Screen 1'
                on_press:
                    root.nav_drawer.set_state('close')
                    root.screen_manager.current = 'scr 1'

            OneLineListItem:
                text: 'Screen 2'
                on_press:
                    root.nav_drawer.set_state('close')
                    root.screen_manager.current = 'scr 2'


MDScreen:

    MDToolbar:
        id: toolbar
        pos_hint: {'top': 1}
        elevation: 10
        title: 'MDNavigationDrawer'
        left_action_items: [['menu', lambda x: nav_drawer.set_state('open')]]

    MDNavigationLayout:
        x: toolbar.height

        ScreenManager:
            id: screen_manager

            MDScreen:
                name: 'scr 1'

                MDLabel:
                    text: 'Screen 1'
                    halign: 'center'

            MDScreen:
                name: 'scr 2'

                MDLabel:
                    text: 'Screen 2'
                    halign: 'center'

        MDNavigationDrawer:
            id: nav_drawer

            ContentNavigationDrawer:
                screen_manager: screen_manager
                nav_drawer: nav_drawer
'''

class ContentNavigationDrawer(MDBoxLayout):
    screen_manager = ObjectProperty()
    nav_drawer = ObjectProperty()

class ModelApp(MDApp):
    def build(self):
        return Builder.load_string(KV)


ModelApp().run()

ID:(13957, 0)

Beschreibung

>Top

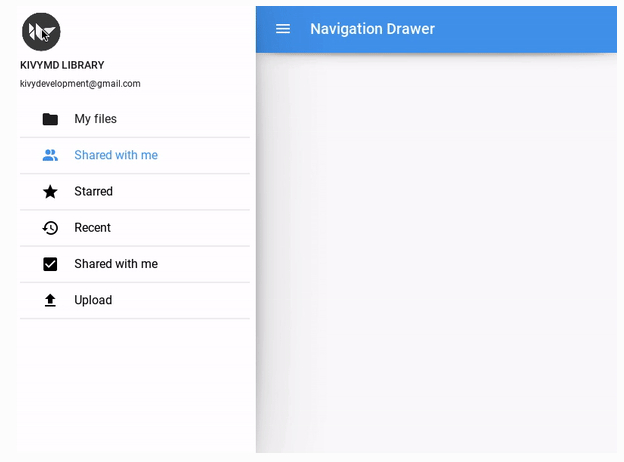

MDNavigationDrawer

Example of MDNavigationDrawer

from kivy.lang import Builder
from kivy.uix.boxlayout import BoxLayout
from kivy.properties import StringProperty, ListProperty

from kivymd.app import MDApp
from kivymd.theming import ThemableBehavior
from kivymd.uix.list import OneLineIconListItem, MDList

KV = '''
# Menu item in the DrawerList list.
<ItemDrawer>:
    theme_text_color: 'Custom'
    on_release: self.parent.set_color_item(self)

    IconLeftWidget:
        id: icon
        icon: root.icon
        theme_text_color: 'Custom'
        text_color: root.text_color

<ContentNavigationDrawer>:
    orientation: 'vertical'
    padding: '8dp'
    spacing: '8dp'

    AnchorLayout:
        anchor_x: 'left'
        size_hint_y: None
        height: avatar.height

        Image:
            id: avatar
            size_hint: None, None
            size: '56dp', '56dp'
            source: 'data/logo/kivy-icon-256.png'

    MDLabel:
        text: 'KivyMD library'
        font_style: 'Button'
        size_hint_y: None
        height: self.texture_size[1]

    MDLabel:
        text: '[email protected]'
        font_style: 'Caption'
        size_hint_y: None
        height: self.texture_size[1]

    ScrollView:

        DrawerList:
            id: md_list

MDScreen:

    MDNavigationLayout:

        ScreenManager:

            MDScreen:

                BoxLayout:
                    orientation: 'vertical'

                    MDToolbar:
                        title: 'Navigation Drawer'
                        elevation: 10
                        left_action_items: [['menu', lambda x: nav_drawer.set_state('toggle')]]

                    Widget:

        MDNavigationDrawer:
            id: nav_drawer

            ContentNavigationDrawer:
                id: content_drawer
'''

class ContentNavigationDrawer(BoxLayout):
    pass

class ItemDrawer(OneLineIconListItem):
    icon = StringProperty()
    text_color = ListProperty((0, 0, 0, 1))

class DrawerList(ThemableBehavior, MDList):
    def set_color_item(self, instance_item):
        '''Called when tap on a menu item.'''

        # Set the color of the icon and text for the menu item.
        for item in self.children:
            if item.text_color == self.theme_cls.primary_color:
                item.text_color = self.theme_cls.text_color
                break
        instance_item.text_color = self.theme_cls.primary_color

class TestNavigationDrawer(MDApp):
    def build(self):
        return Builder.load_string(KV)

    def on_start(self):
        icons_item = {
            'folder': 'My files',
            'account-multiple': 'Shared with me',
            'star': 'Starred',
            'history': 'Recent',
            'checkbox-marked': 'Shared with me',
            'upload': 'Upload',
        }
        for icon_name in icons_item.keys():
            self.root.ids.content_drawer.ids.md_list.add_widget(
                ItemDrawer(icon=icon_name, text=icons_item[icon_name])
            )

TestNavigationDrawer().run()

ID:(13958, 0)
